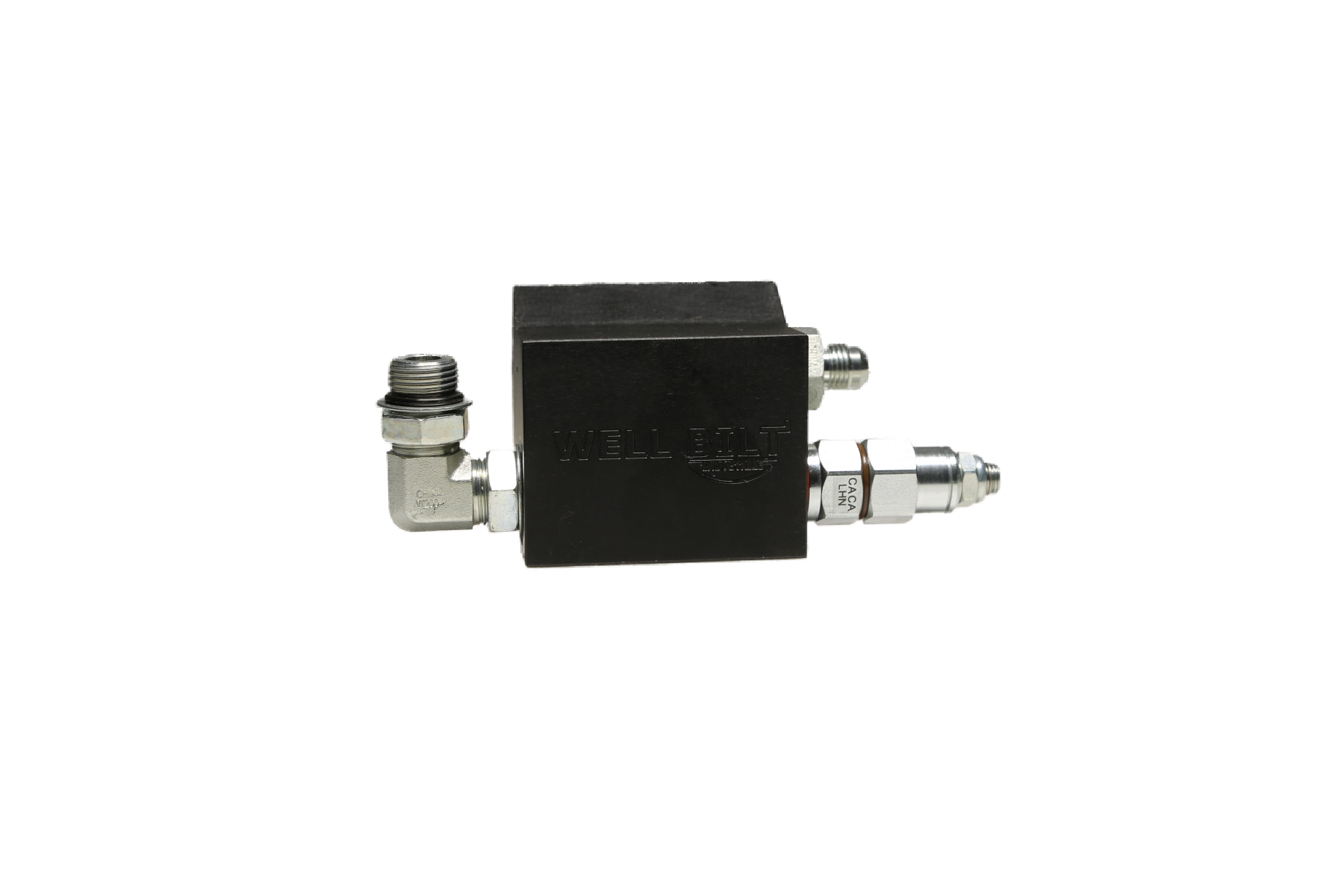

Cylinder Safety Block with Safety Cartridge Valve

Product Description

A hydraulic door safety block with a cartridge valve is a mechanism designed to enhance safety in hydraulic systems, particularly in applications involving heavy doors or machinery. Here's a breakdown of its components and how it works:

1. Hydraulic System: The hydraulic system consists of a fluid-filled network of pipes, cylinders, and valves used to transmit power and control motion. In the case of a hydraulic door, this system is responsible for opening and closing the door smoothly and safely.

2. Cartridge Valve: A cartridge valve is a compact valve that can be inserted into a hydraulic system as a single unit. It typically consists of a housing with internal components such as a poppet, spool, or ball, which control the flow of hydraulic fluid. Cartridge valves are known for their ease of installation and maintenance.

3. Safety Block: The safety block is a specialized component that integrates a cartridge valve with additional safety features. It is installed in the hydraulic system to prevent unintended movements or sudden releases of pressure, especially in situations where there is a risk of injury or damage.

4. Functionality: The safety block with a cartridge valve is typically configured to maintain hydraulic pressure and prevent the door from closing unexpectedly. It achieves this by controlling the flow of hydraulic fluid in such a way that the door can only be operated intentionally and safely. If there is a sudden loss of pressure or an attempt to close the door too quickly, the safety block will activate to halt the movement and maintain the door in its current position.

Overall, a hydraulic door safety block with a cartridge valve provides an effective means of enhancing safety and control in hydraulic door systems, making them essential components in various industrial and commercial applications.
